STANDALONE PRINTERS

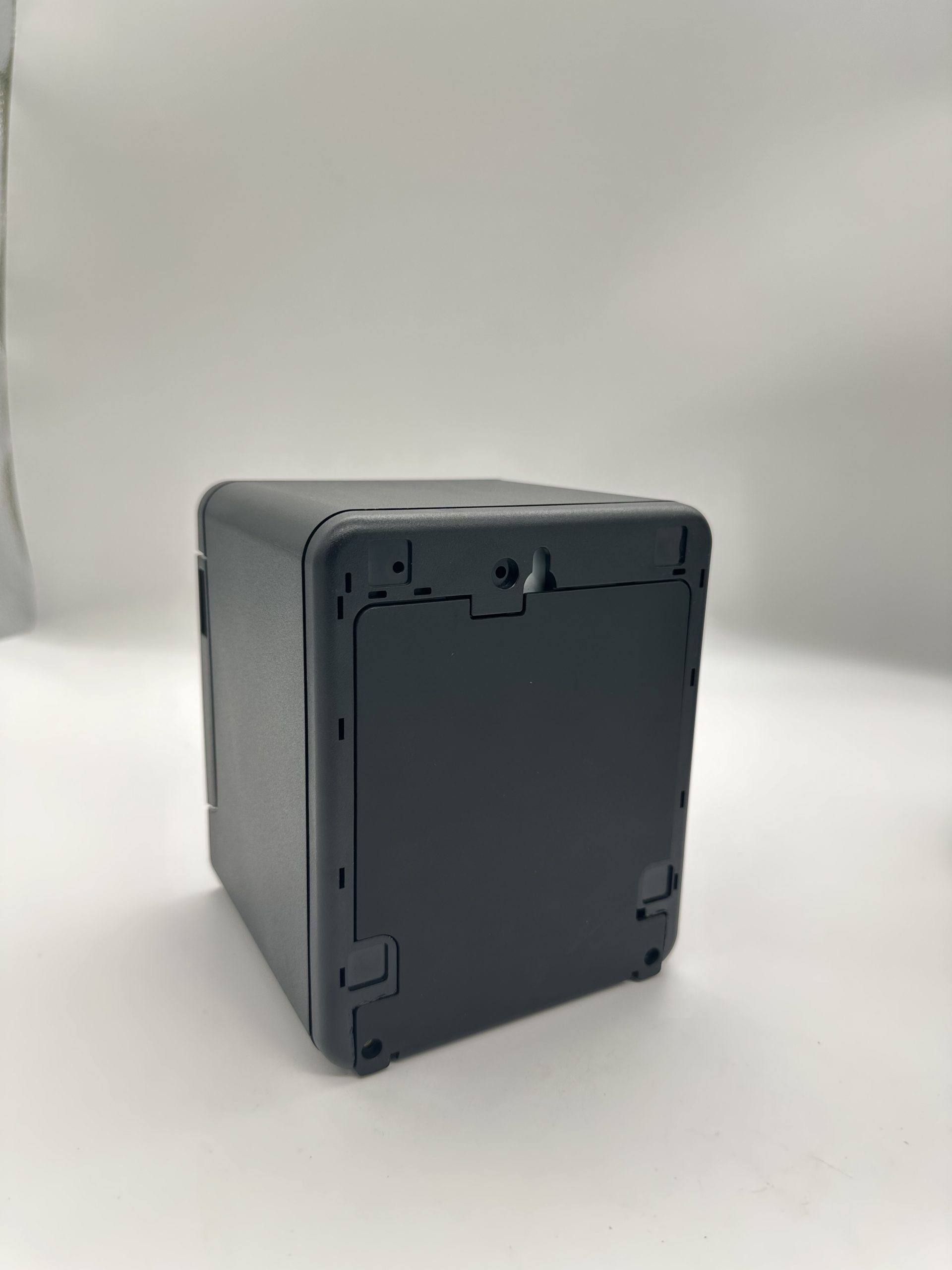

Toshiba POS Printer
A hospitality-grade, splash-resistant, compact point-of-sale receipt printer that's easy to use, maintain and intergrate
Receipt Printing
254mm/s print speed
180/203dpi resolution
Jam detection
USB, Serial, Ethernet
SUITABLE FOR
AIRPORT
THEATER
LOTTERY
TECHNICAL SPECIFICATIONS
| Technical Specifications | ||
|---|---|---|
| Model Name | TRST-P1 | TRST-P2 |
| Performance | ||
| Maximum Print Speed | 355 mm/sec, 14 ips | 254 mm/sec, 10 ips |
| Hardware | ||
| Interfaces USB | USB Type-B: USB 2.0 High Speed Printer class – Built in, USB Type-A: USB High Speed - Built in (for rmware/configuration update) Ethernet (10/100BASE-T) - option, RS232 - option | |
| Cash Drawer Connection | RJ 12 connector up to 2 cash drawers | |
| Power Supply | External | |
| Power Supply Voltage | 24 VDC | |
| Power Consumption | 1) Terminal Power – Low Mode (Term Pwr-Low): Maximum allowable printing power consumption is 55W 2) 60W Power Supply Mode (60W Ext Pwr): Maximum allowable printing cycle power consumption is 60W | |
| Energy Star Certified | Yes | |
| Thermal Print Head Life | 200 km | |
| Auto Cutter Life | 2,000,000 cuts with 2.4 mil thickness media using specied paper type (NPI TF50KS-EY) | |
| IP Rating | IP21 | |
| Dimensions (WxDxH) | W 134.1mm x H 136.4mm x D 163.9mm | |
| Weight (Kg) | 1.1 Kg | |
| Case Color | Black | |
| Print Fonts | ||
| Font A | 12 x 24 (42 CPL / 30 CPL) | 12 x 24 (48 CPL / 34 CPL) |
| Font A (size 2) | N/A | 13 x 28 (42CPL / 30 CPL) |
| Font B | 9 x 24 (56 CPL / 40 CPL) | 9 x 24 (64 CPL / 44 CPL) |
| Font B (size 2) | N/A | 10 x 28 (56 CPL / 40 CPL) |
| Customized Font | Yes | |
| Code Page | Code Page 437 (Default), Code Page 850, Code Page 860, Code Page 863, Code Page 865, Code Page 852, Code Page 866, Code Page 857, Code Page 1252, Code Page 858, Code Page 1253, Code Page 1254, Code Page 1256 | |
| Double Byte Code Pages | No | |
| Bar Codes Supported | UPC-A, UPC-E, JAN-13 (EAN13), JAN-8 (EAN8), CODE39, Interleaved 2 of 5 (ITF), CODABAR (NW-7), Code 93, Code 128, PDF417, GS1 DataBar, QR code | |
